ICE MAKER-20-30-40KG

ICE MAKER-20-30-40KG

E-mail :kh2018pcba@vip.163.com

Product Details

0
Views: 169

20-30-40KG ICE MAKER SPEC SHEET

S/N ITEM GK-20 GK-30 GK-40
1 Rated Volt/Frequency 220-240V/50Hz 220-240V/50Hz 220-240V/50Hz
2 Unit Model SK-20 SK-30 SK-40
3 Unit Style Air front Air front Air front
4 Electrical Safety Authorization
5 Climate 10-40℃ 10-40℃ 10-40℃
  Packing

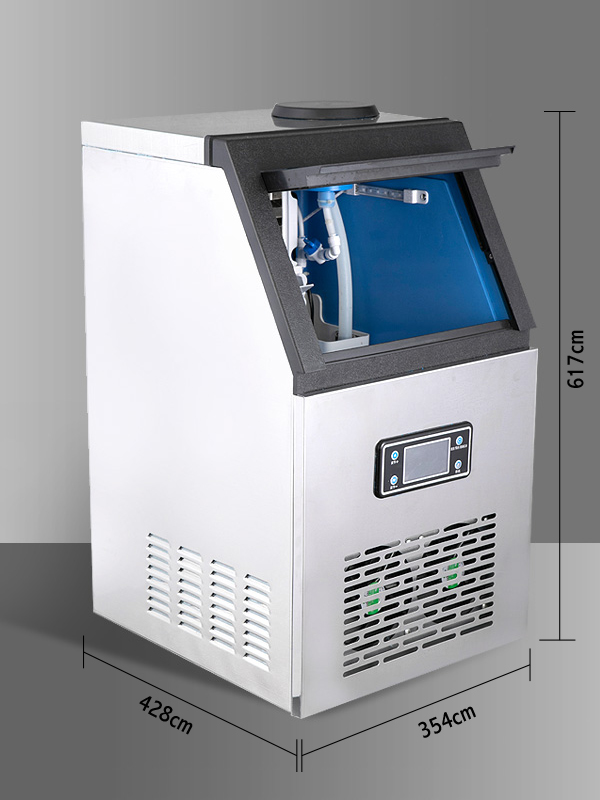

6 Unit Size(no foot)mm 354x428x617 354x428x617 354x428x617
7 Unit Size(with foot)mm 354x428x637 354x428x637 354x428x637
8 Loading Quantity(20'/40'/40'HQ) 177/369/369 177/369/369 177/369/369
9 Package Size mm 430x505x670 430x505x670 430x505x670
10 Carton Style 2-corrugated 2-corrugated 2-corrugated
11 Package Style base+carton top with
 cardboard support & inforce frame outside.
base+carton top with
 cardboard support & inforce frame outside.
base+carton top with
 cardboard support & inforce frame outside.
12 Net Weight       KG 20 20.25 20.8
13 Gross Weight     KG 21.7 21.95 22.5
  Performance
14 Ice capacity(Kg/24Hr,23℃ air,10℃ water ) 20 30 40
15 Water tank volum  L 2.4 2.4 2.4
16 Ice basket volume  L 13 11.5 10
17 Cycle time 10-35min 10-35min 10-35min
18 Ice cubes Qty per cycle 24 32 45
19 Ice cube size 23mm x 23mm x 23mm 23mm x 23mm x 23mm 23mm x 23mm x 23mm
20 Ice cube shape square square square
21 Weight of one ice cube 8-10g 8-10g 8-10g
22 Water supply Auto, 0.1-0.8MPa Auto, 0.1-0.8MPa Auto, 0.1-0.8MPa
23 Clean method manually manually manually
24 Timer YES YES YES
  Unit configuration
25 Main struction(flip/drawer/slide door) slide door, black slide door, black slide door, black
26 Interior structure foaming foaming foaming
  Refrigerant System
27 Refrigerant R134a R134a R134a
28 Layers of condenser 2 2 2
29 Cooling mode of condenser air cooled air cooled air cooled
  Evaporator structure
30 Surface treatment of Evaporator nickel plated nickel plated nickel plated
  Other function
31 Trash ice NO NO NO
32 Cold water NO NO NO
33 Indicator of water shortage YES YES YES
34 Indicator of ice full YES YES YES
35 Others     CE
36 Note/ Size of Ice Cube 23*23*23mm 23*23*23mm 23*23*23mm
