Port:Cixi,China
Production Capacity:30000 Pieces/ Year
Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram
Control:Electric
Structure:Integral Type
Material:Stainless Steel
Application:Commercial, Industrial, Household
Condensing Mode:Air-Cooled
Model:JK-28-38-48-58-68
Voltage:220-240v/50Hz
Product Size(mm):23*23*23mm
Carton Size(mm) 770*735*920
Ice quantity per cycle:90
Ice daily output:98Kgs
S/N | ITEM | GK-28 | GK-38 | GK-48 | GK-58 | GK-68 |
1 | Rated Volt/Frequency | 220-240V/50Hz | 220-240V/50Hz | 220-240V/50Hz | 220-240V/50Hz | 220-240V/50Hz |
2 | Unit Model | SK-28 | SK-38 | SK-48 | SK-58 | SK-68 |
3 | Unit Style | Air front | Air front | Air front | Air front | Air front |
4 | Electrical Safety Authorization | |||||
5 | Climate | 10-40℃ | 10-40℃ | 10-40℃ | 10-40℃ | 10-40℃ |
Packing | ||||||

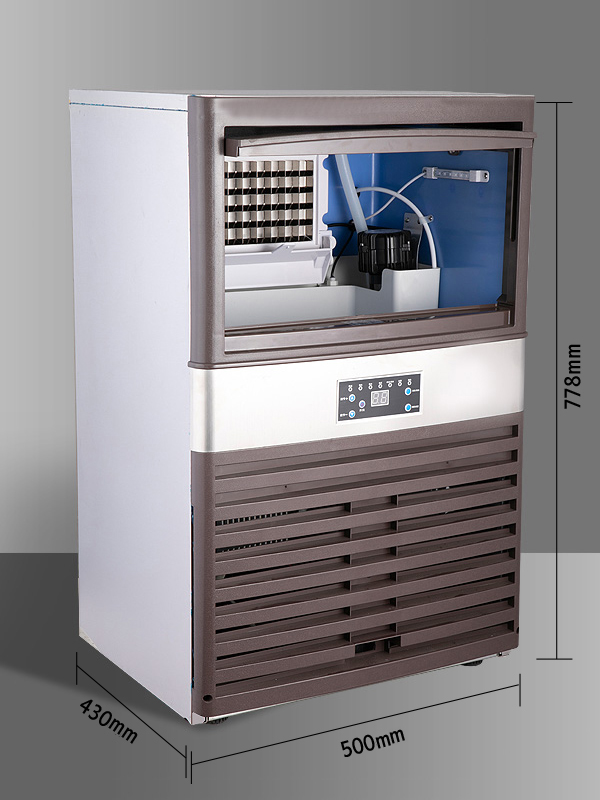

6 | Unit Size(no foot)mm | 500x430x778 | 500x430x778 | 500x430x778 | 500x430x778 | 500x430x778 |
7 | Unit Size(with foot)mm | 500x430x798 | 500x430x798 | 500x430x798 | 500x430x798 | 500x430x798 |
8 | Loading Quantity(20'/40'/40'HQ) | 88/184/276 | 88/184/276 | 88/184/276 | 88/184/276 | 88/183/276 |
9 | Package Size mm | 562x502x859 | 562x502x859 | 562x502x859 | 562x502x859 | 562x502x859 |
10 | Carton Style | 2-corrugated | 2-corrugated | 2-corrugated | 2-corrugated | 2-corrugated |
11 | Package Style | base+carton top with cardboard support & inforce frame outside. |
base+carton top with cardboard support & inforce frame outside. |
base+carton top with cardboard support & inforce frame outside. |
base+carton top with cardboard suppor t & inforce frame outside. |
base+carton top with cardboard support & inforce frame outside. |
12 | Net Weight KG | 28.35 | 28.55 | 30.2 | 31.45 | 30.5 |
13 | Gross Weight KG | 30.7 | 30.9 | 32.5 | 33.75 | 33 |
Performance | ||||||
14 | Ice capacity(Kg/24Hr,23℃ air,10℃ water ) | 28 | 38 | 48 | 58 | 68 |
15 | Water tank volum L | 3 | 3 | 3 | 3 | 3 |
16 | Ice basket volume L | 19 | 18 | 18 | 18 | 18 |
17 | Cycle time | 10-35min | 10-35min | 10-35min | 10-35min | 10-35min |
18 | Ice cubes Qty per cycle | 32 | 40 | 45 | 55 | 70 |
19 | Ice cube size | 23mm x 23mm x 23mm | 23mm x 23mm x 23mm | 23mm x 23mm x 23mm | 23mm x 23mm x 23mm | 23mm x 23mm x 23mm |
20 | Ice cube shape | square | square | square | square | square |
21 | Weight of one ice cube | 8-10g | 8-10g | 8-10g | 8-10g | 8-10g |
22 | Water supply | Auto, 0.1-0.8MPa | Auto, 0.1-0.8MPa | Auto, 0.1-0.8MPa | Auto, 0.1-0.8MPa | Auto, 0.1-0.8MPa |
23 | Clean method | manually | manually | manually | manually | manually |
24 | Timer | YES | YES | YES | YES | YES |
Unit configuration | ||||||
25 | Main struction(flip/drawer/slide door) | slide door, brown | slide door, brown | slide door, brown | slide door, brown | slide door, brown |
26 | Interior structure | foaming | foaming | foaming | foaming | foaming |
Refrigerant System | ||||||
27 | Refrigerant | R134a | R134a | R134a | R134a | R134a |
28 | Layers of condenser | 2 | 2 | 2 | 2 | 2 |
29 | Cooling mode of condenser | air cooled | air cooled | air cooled | air cooled | air cooled |
Evaporator structure | ||||||
30 | Surface treatment of Evaporator | nickel plated | nickel plated | nickel plated | nickel plated | nickel plated |
Other function | ||||||
31 | Trash ice | NO | NO | NO | NO | NO |
32 | Cold water | NO | NO | NO | NO | NO |
33 | Indicator of water shortage | YES | YES | YES | YES | YES |
34 | Indicator of ice full | YES | YES | YES | YES | YES |
35 | Others | CE | CE | |||
Note/ Size of Ice Cube | ![]() |
![]() |
![]() |
![]() |
![]() |
