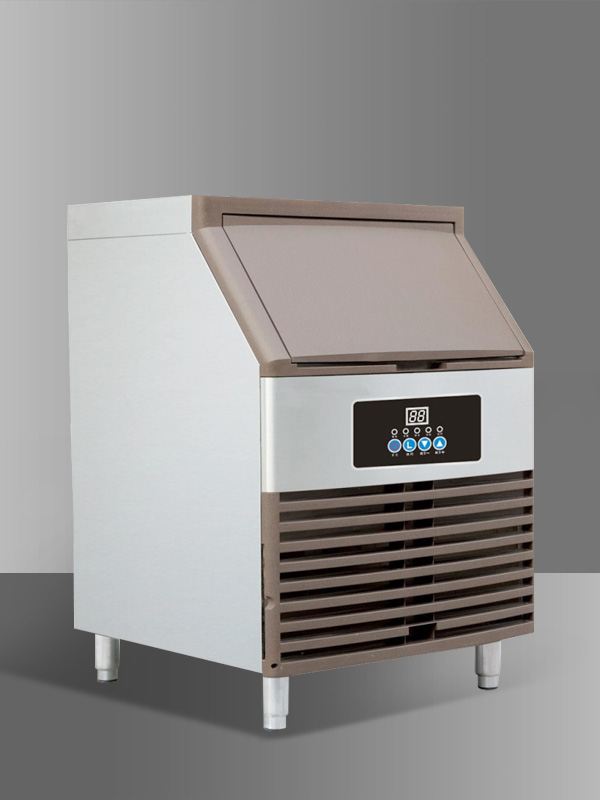

RESTAURANT AND COMMERCIAL ICE CUBE MAKER

RESTAURANT AND COMMERCIAL ICE CUBE MAKER

E-mail :[email protected]

Product Details

Port:Ningbo, China
Production Capacity:30000 Pieces/ Year
Payment Terms:L/C, T/T, D/P, Western Union, Paypal, Money Gram
Ice shape:Cube
Control:Electric
Power:220-240V/50Hz
Structure:Integral Type
Material:Stainless Steel
Application:Commercial, Industrial, Household
68-98-118-138KG ICE MAKER SPEC SHEET
S/N ITEM GK-68 GK-98 GK-118 GK-138
1 Rated Volt/Frequency 220-240V/50Hz 220-240V/50Hz 220-240V/50Hz 220-240V/50Hz
2 Unit Model SK-68 SK-98 SK-118 SK-138
3 Unit Style Air front Air front Air front Air front
4 Electrical Safety Authorization
5 Climate 10-40℃ 10-40℃ 10-40℃ 10-40℃
  Packing

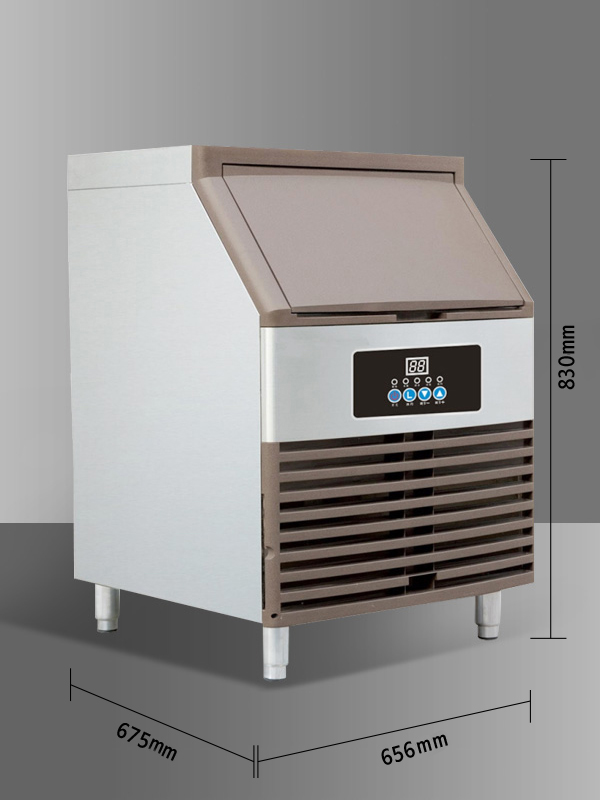

6 Unit Size(no foot)mm 656x675x830 656x675x830 656x675x830 656x675x830
7 Unit Size(with foot)mm 656x675x960 656x675x960 656x675x960 656x675x960
8 Loading Quantity(20'/40'/40'HQ) 48/96/96 48/96/96 48/96/96 48/96/96
9 Package Size mm 770x735x920 770x735x920 770x735x920 770x735x920
10 Carton Style 2-corrugated 2-corrugated 2-corrugated 2-corrugated
11 Package Style base+carton top with
 cardboard support &
 inforce frame outside.
base+carton top with
 cardboard support &
 inforce frame outside.
base+carton top with
 cardboard support &
 inforce frame outside.
base+carton top with
 cardboard support &
 inforce frame outside.
12 Net Weight       KG 49 51 53.5 55
13 Gross Weight     KG 51 53 55.5 57
  Performance
14 Ice capacity(Kg/24Hr,23℃ air,10℃ water ) 68 98 118 138
15 Water tank volum  L 4 4 4 4
16 Ice basket volume  L 45 45 43 41
17 Cycle time 10-35min 10-35min 10-35min 10-35min
18 Ice cubes Qty per cycle 70 90 108 126
19 Ice cube size 23mm x 23mm x 23mm 23mm x 23mm x 23mm 23mm x 23mm x 23mm 23mm x 23mm x 23mm
20 Ice cube shape square square square square
  Weight of one ice cube 8-10g 8-10g 8-10g 8-10g
22 Water supply Auto, 0.1-0.8MPa Auto, 0.1-0.8MPa Auto, 0.1-0.8MPa Auto, 0.1-0.8MPa
23 Clean method manually manually manually manually
24 Timer YES YES YES YES
  Unit configuration
25 Main struction(flip/drawer/slide door) slide door, brown slide door, brown slide door, brown slide door, brown
26 Interior structure foaming foaming foaming foaming
  Refrigerant System
27 Refrigerant R134a R22 R22 R22
28 Layers of condenser 2 2 2 2
29 Cooling mode of condenser air cooled air cooled air cooled air cooled
  Evaporator structure
30 Surface treatment of Evaporator nickel plated nickel plated nickel plated nickel plated
  Other function
31 Trash ice NO NO NO NO
32 Cold water NO NO NO NO
33 Indicator of water shortage YES YES YES YES
34 Indicator of ice full YES YES YES YES
35 Others
36 Note/ Size of Ice Cube 23*23*23mm 23*23*23mm 23*23*23mm 23*23*23mm
